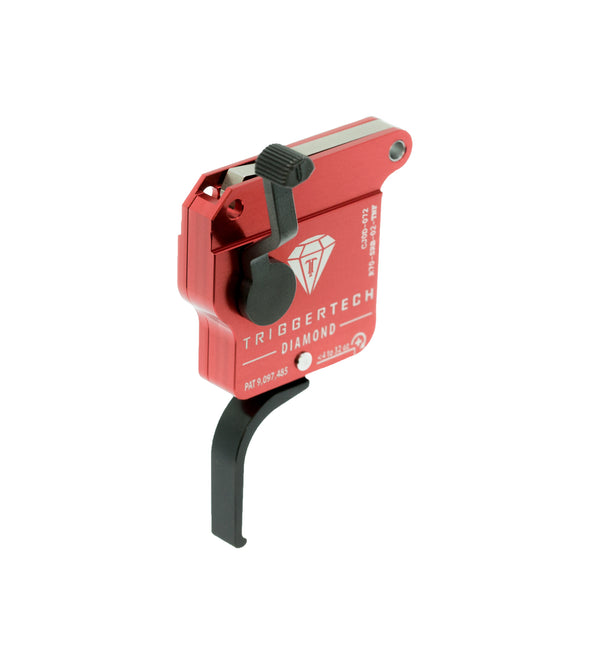

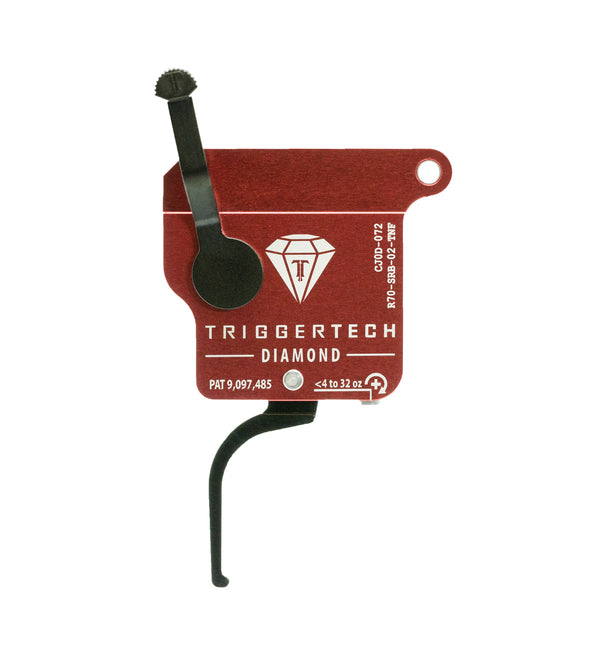

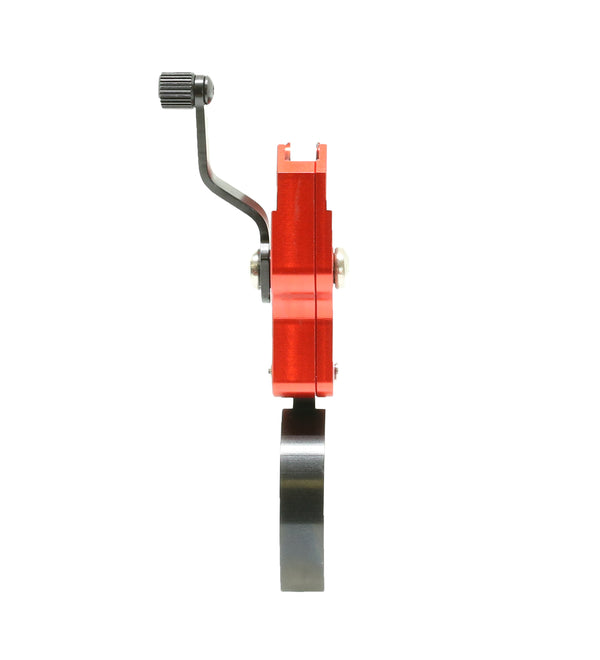

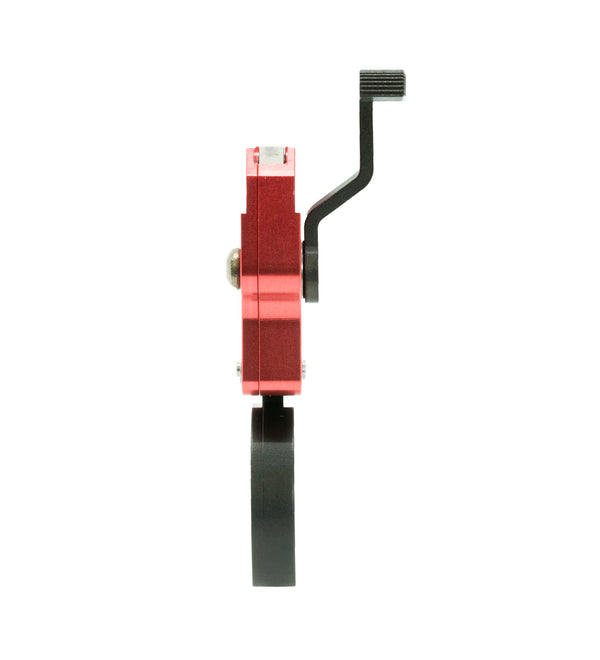

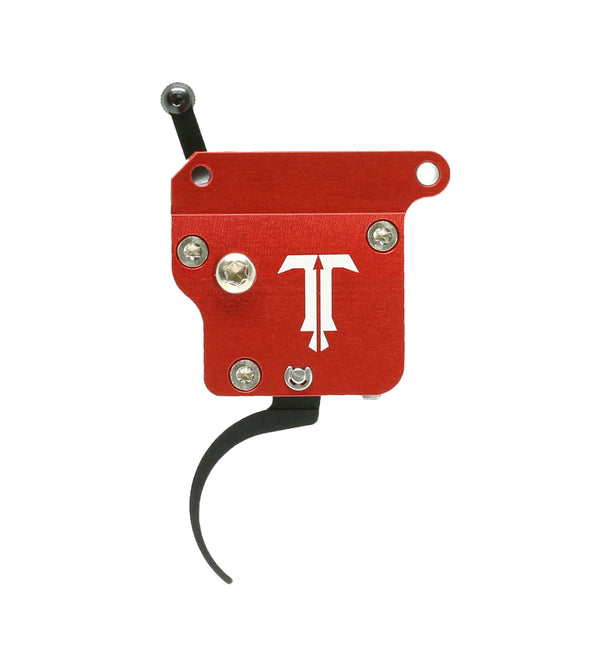

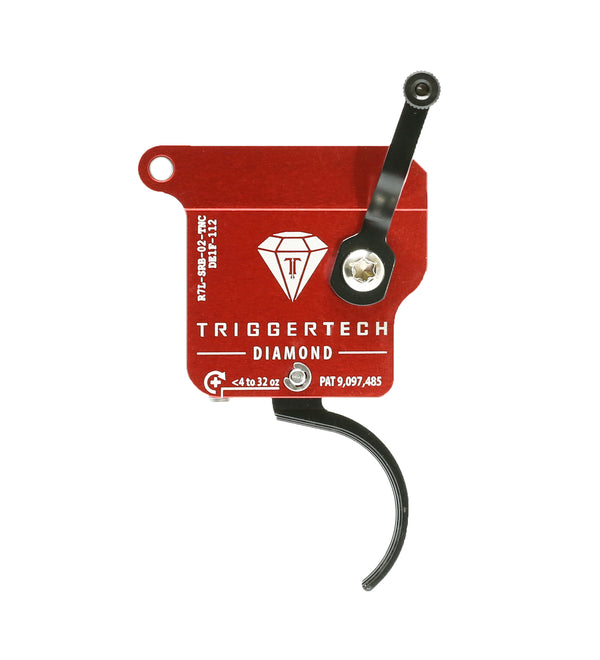

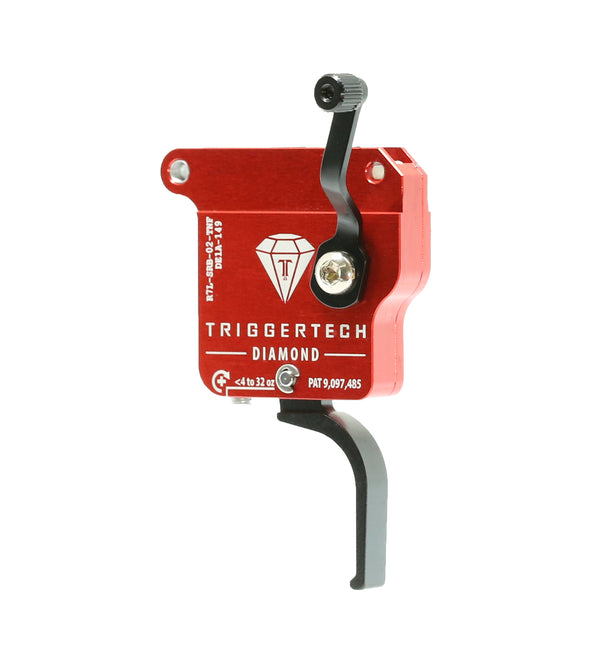

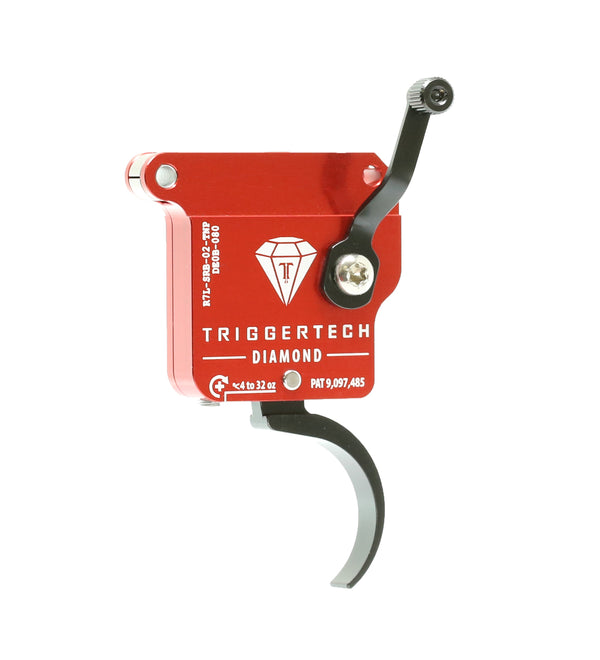

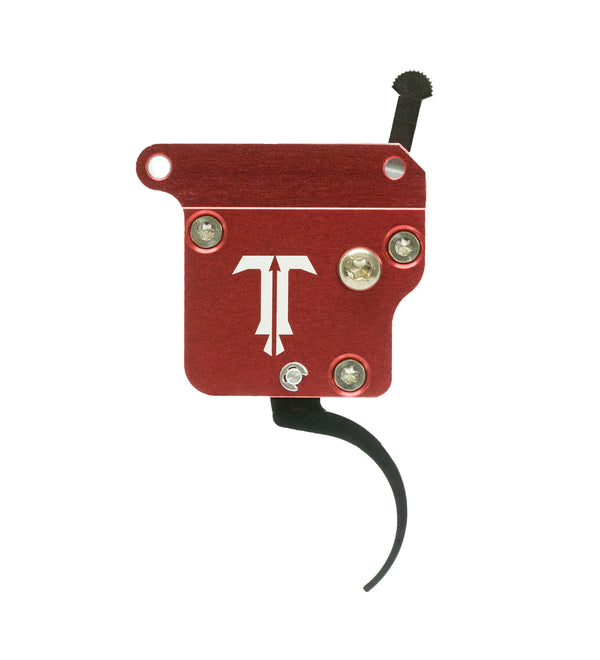

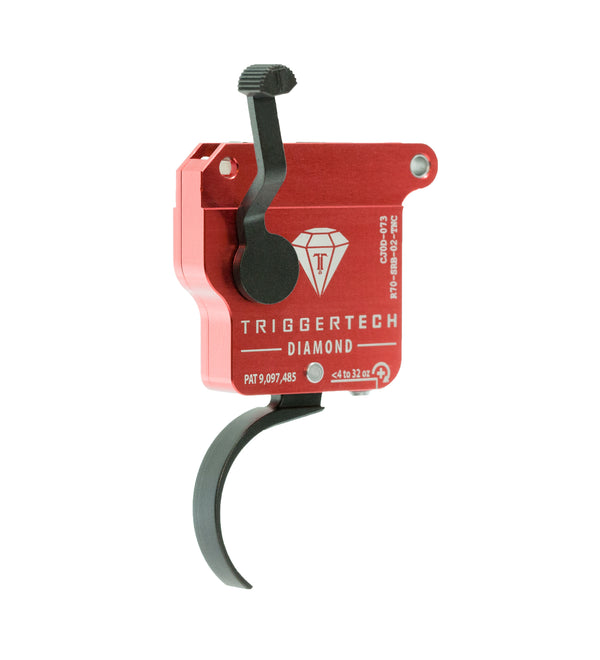

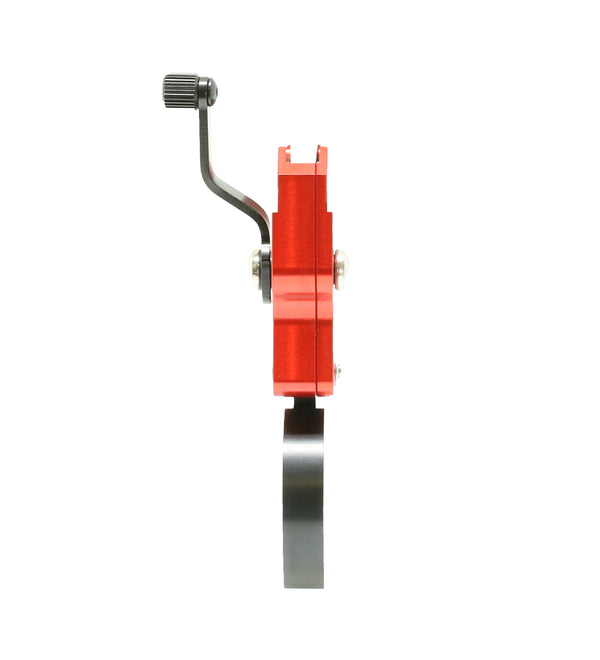

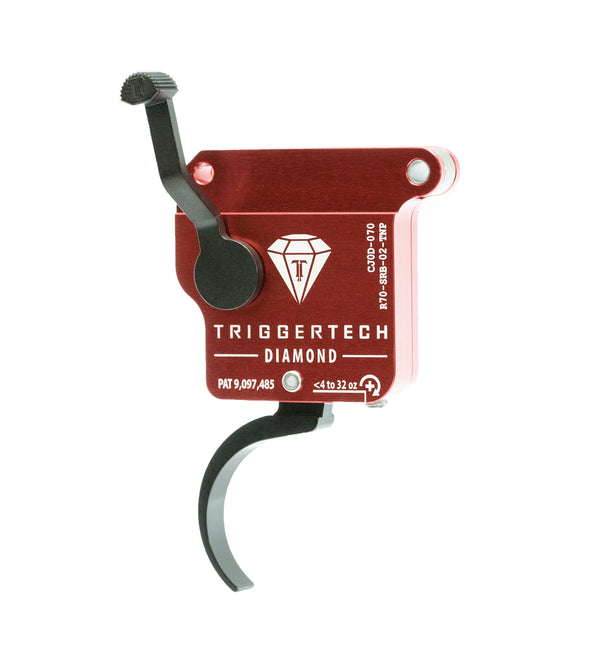

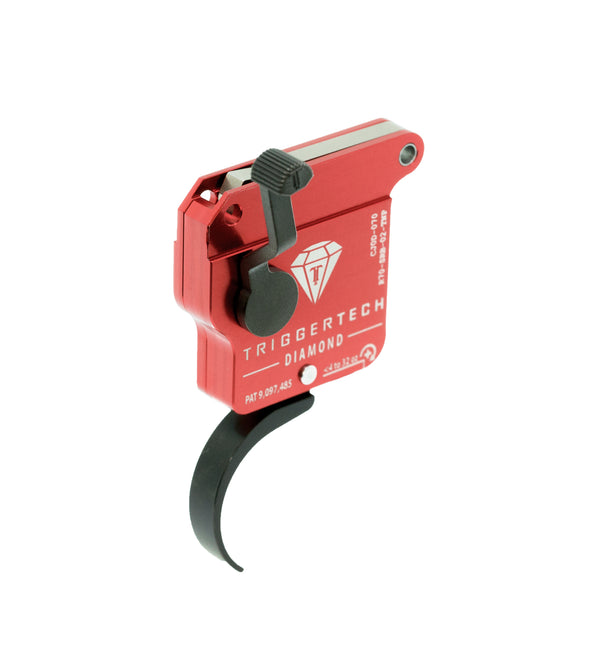

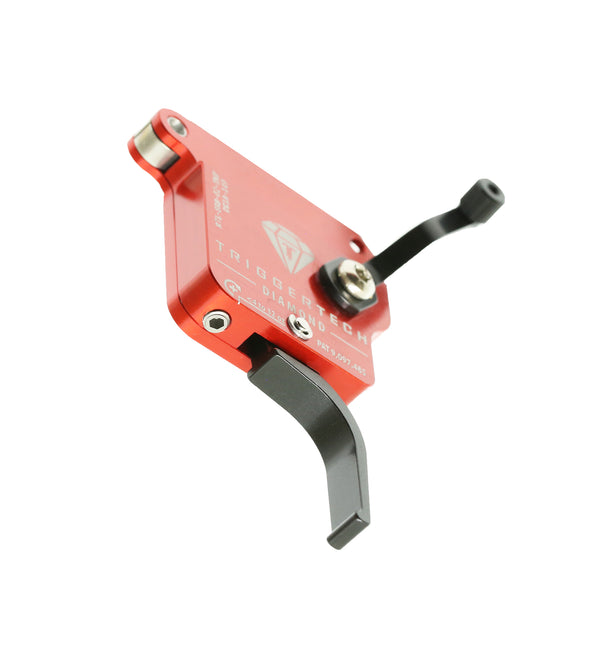

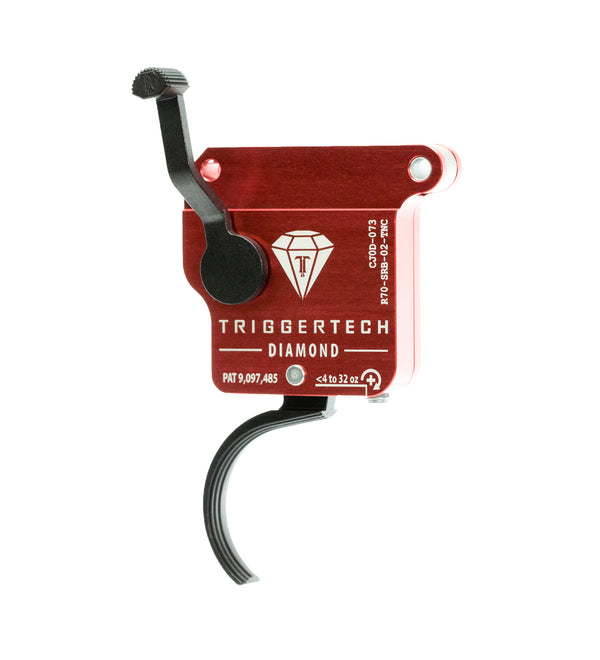

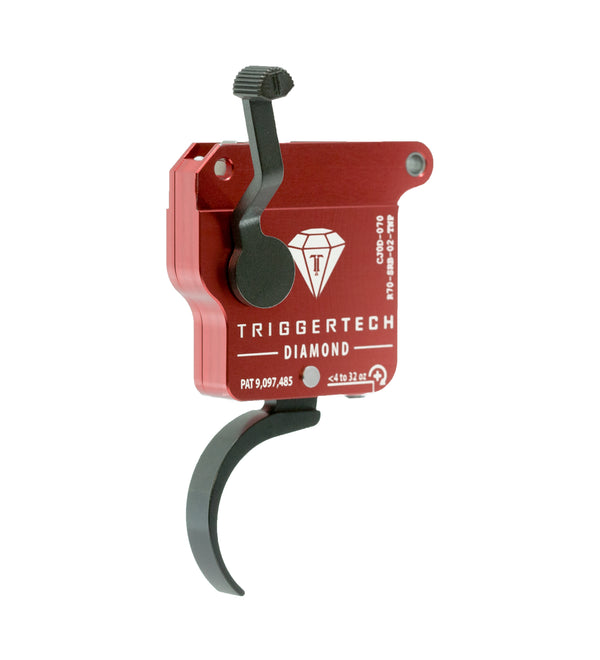

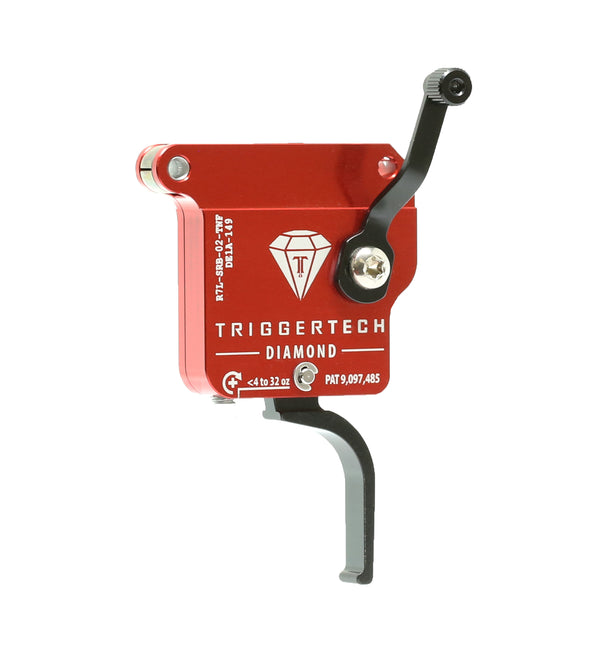

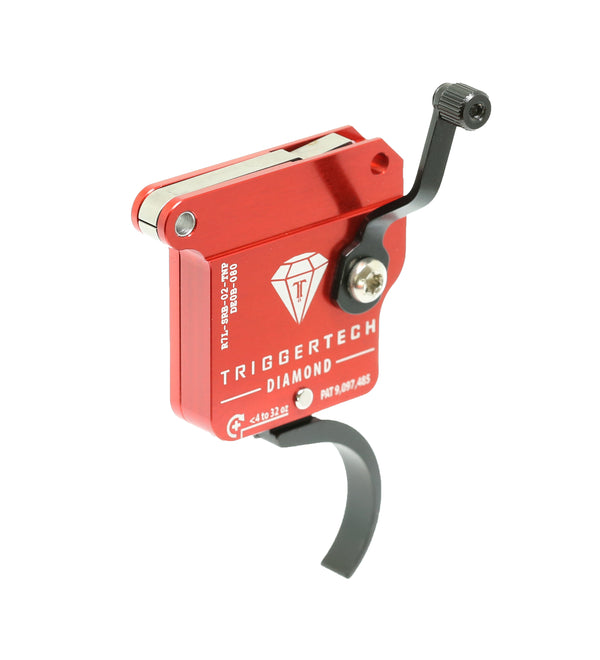

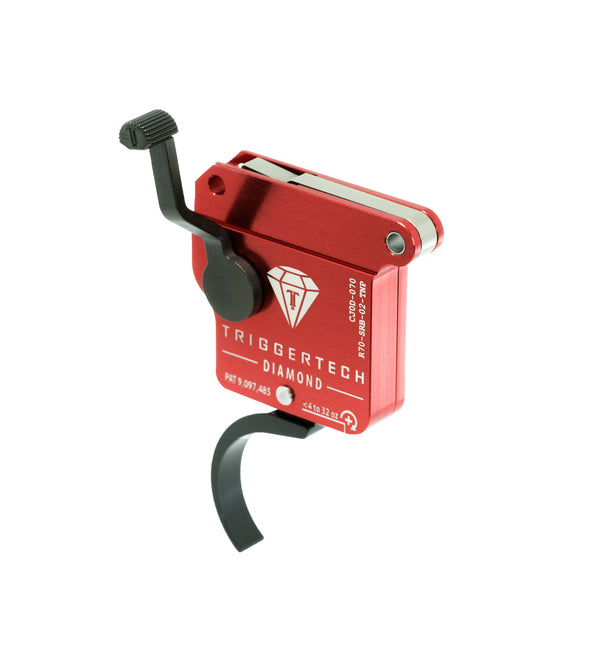

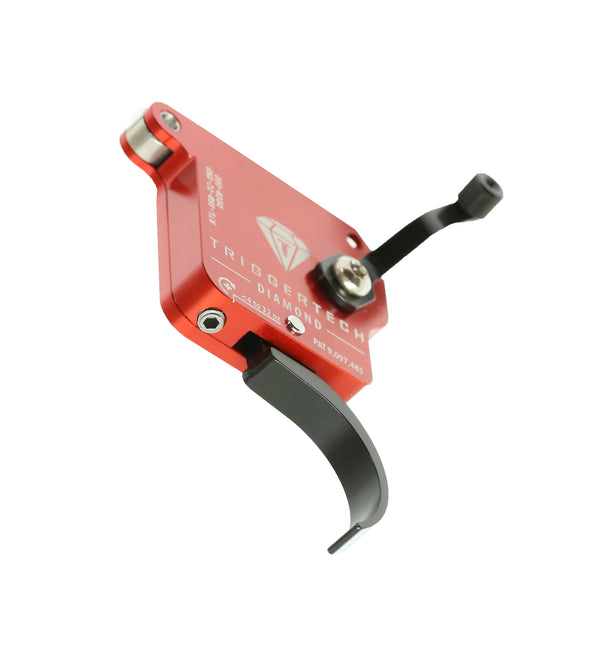

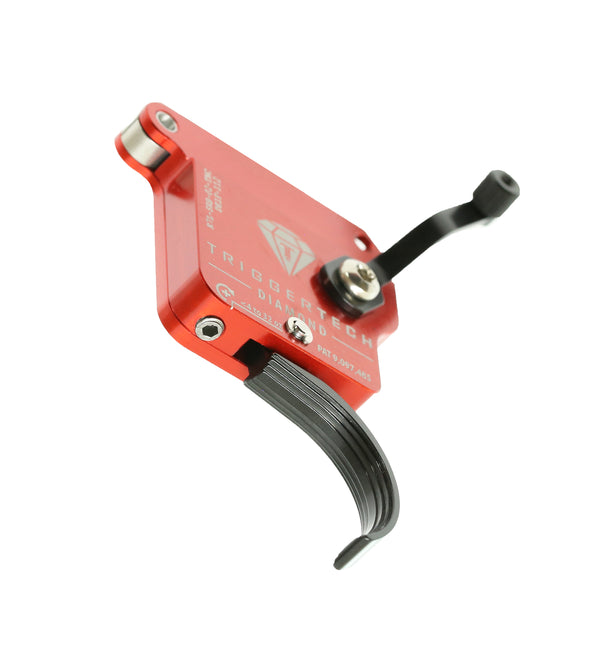

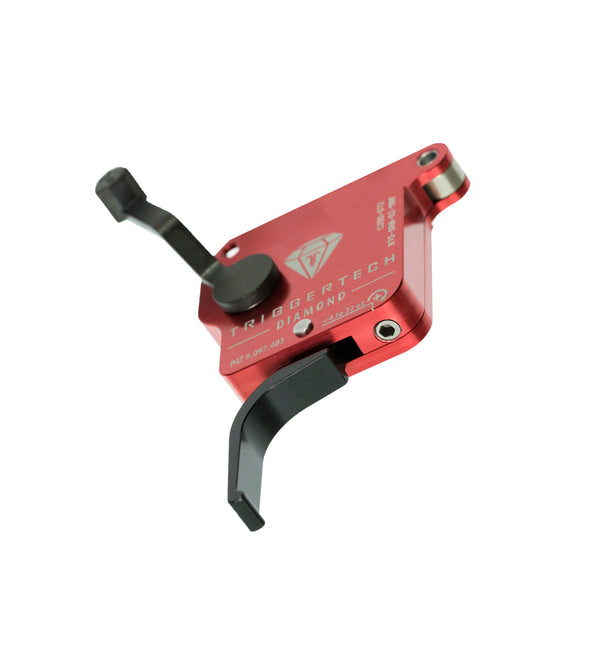

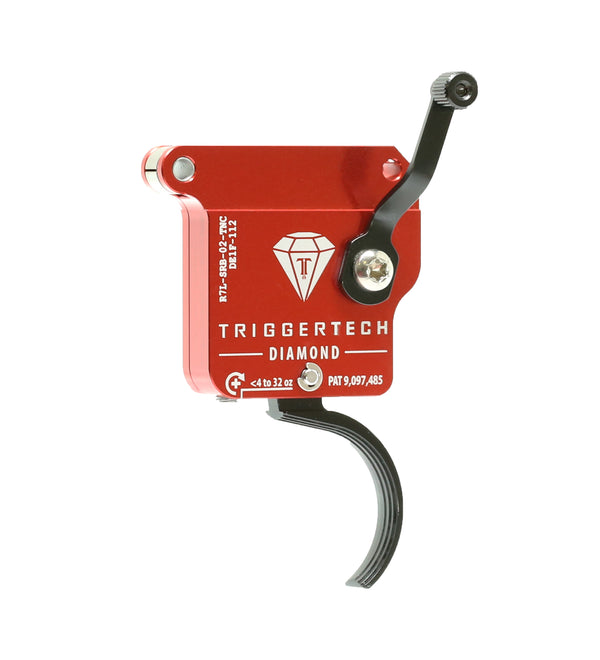

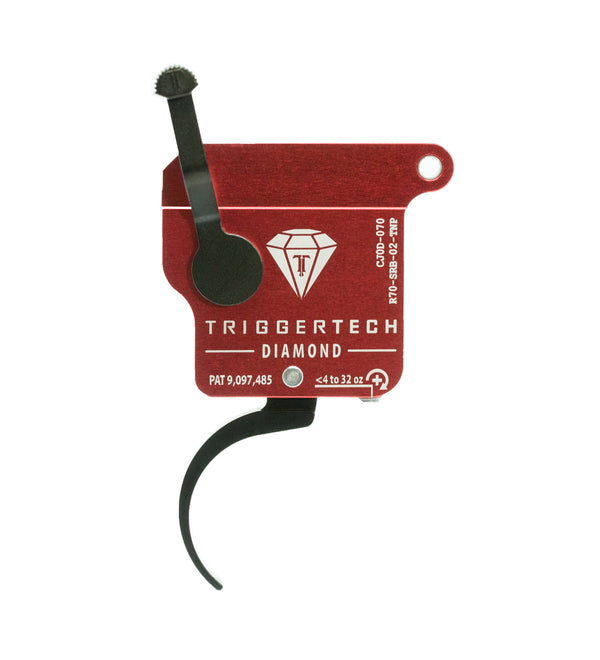

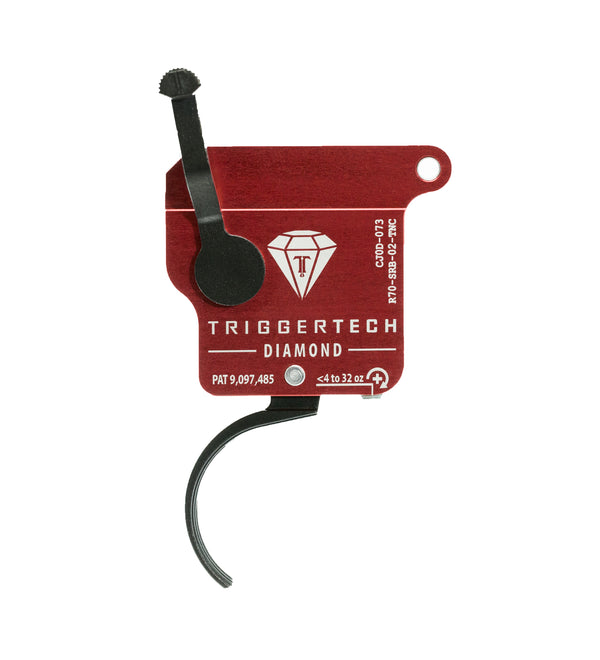

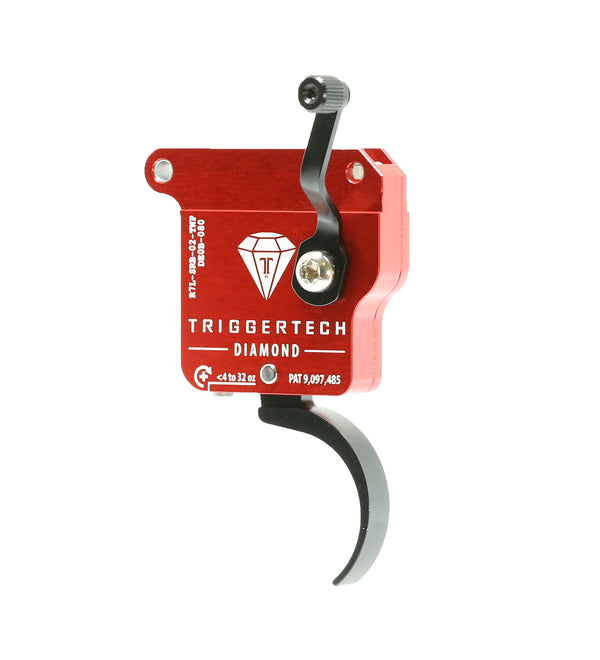

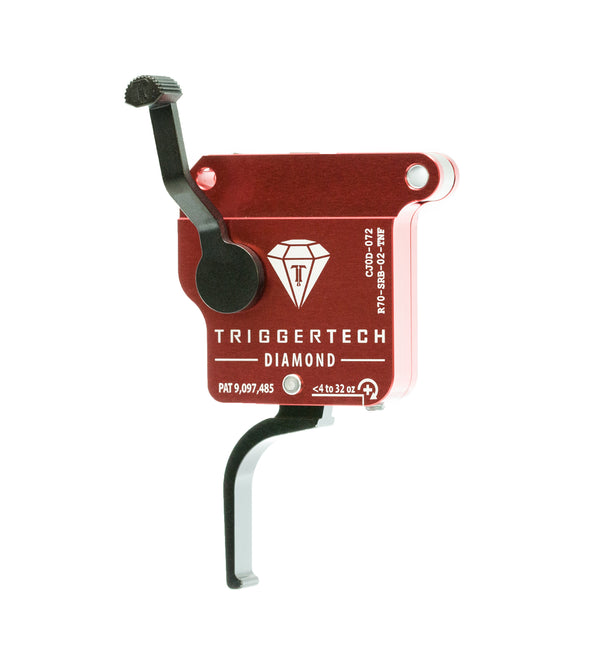

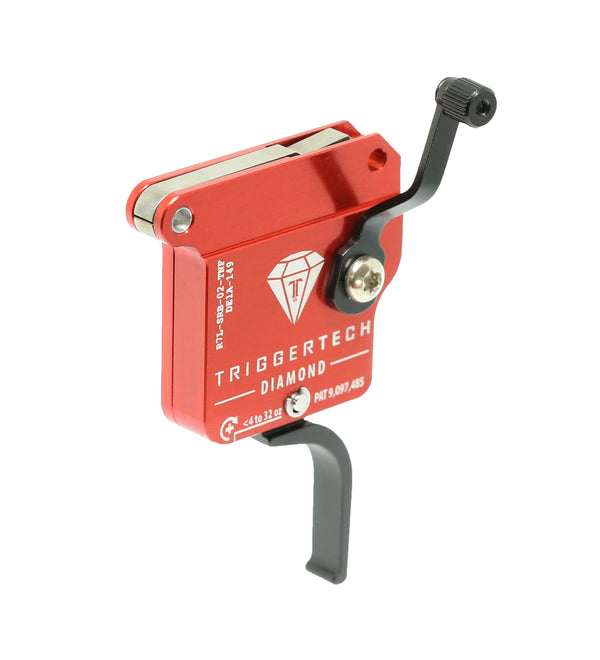

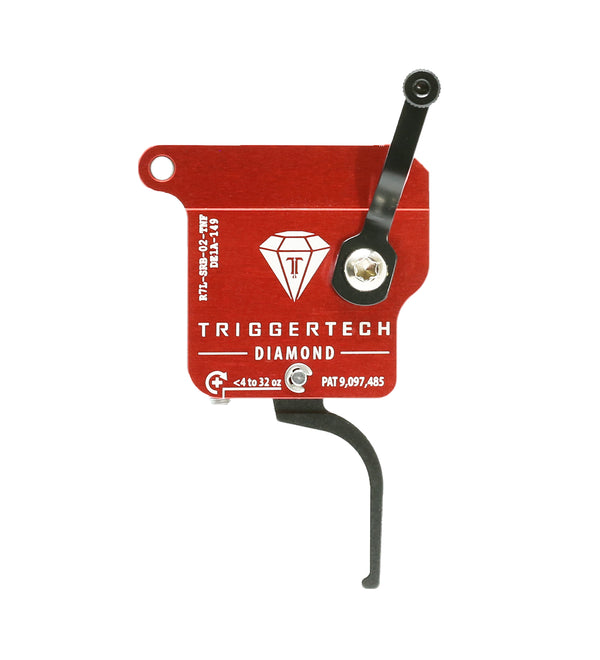

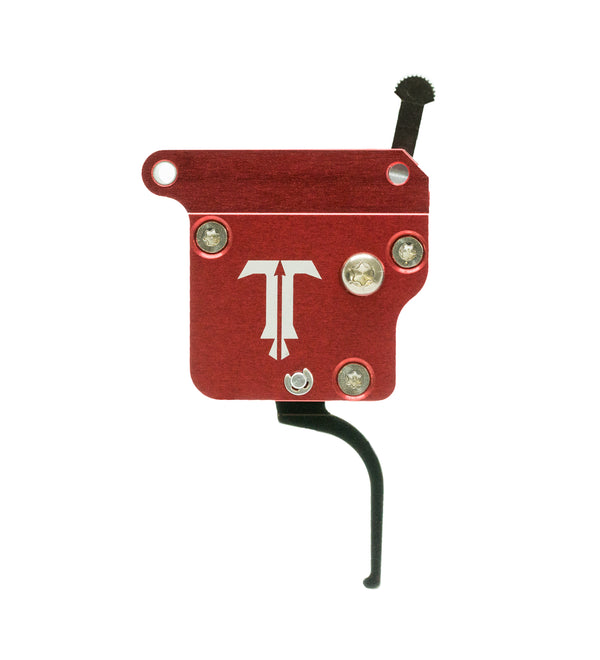

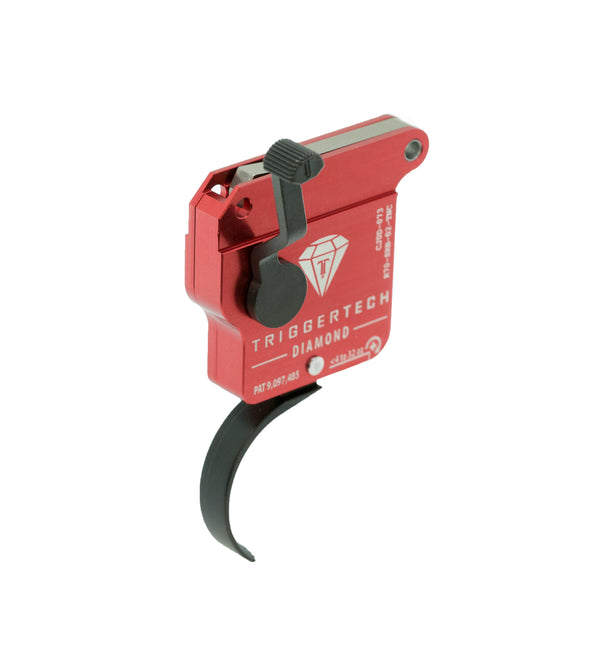

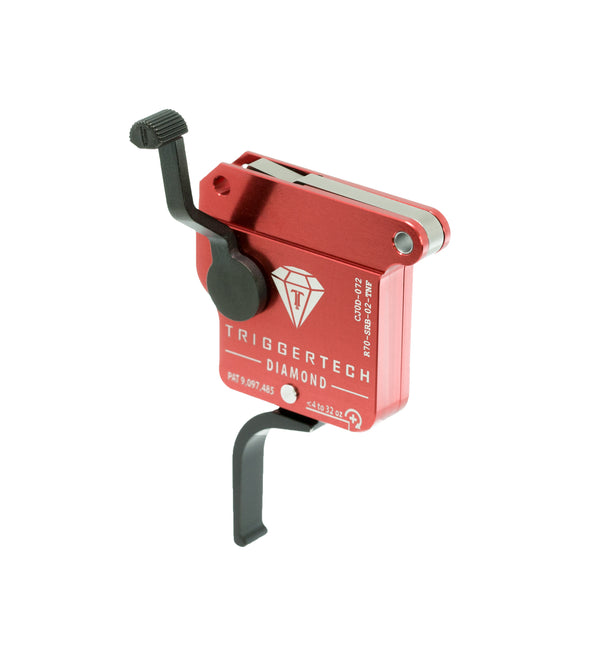

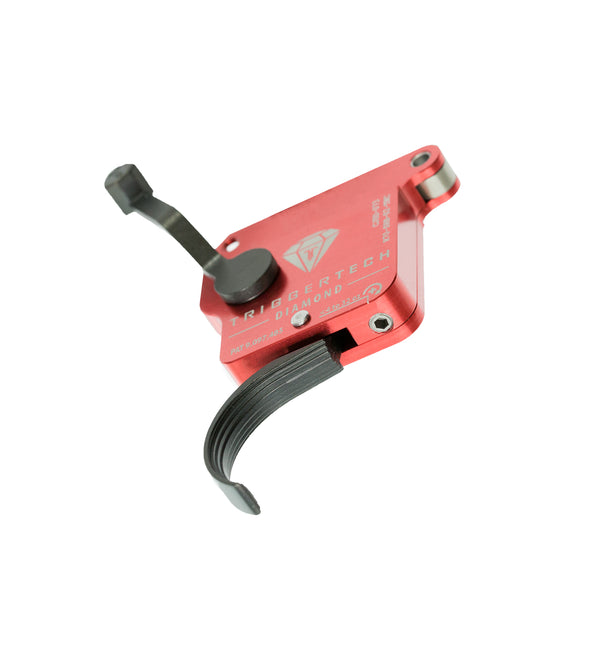

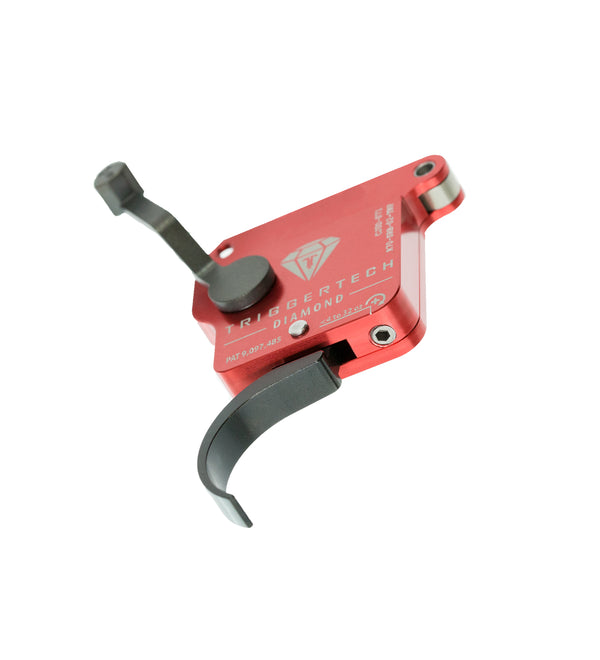

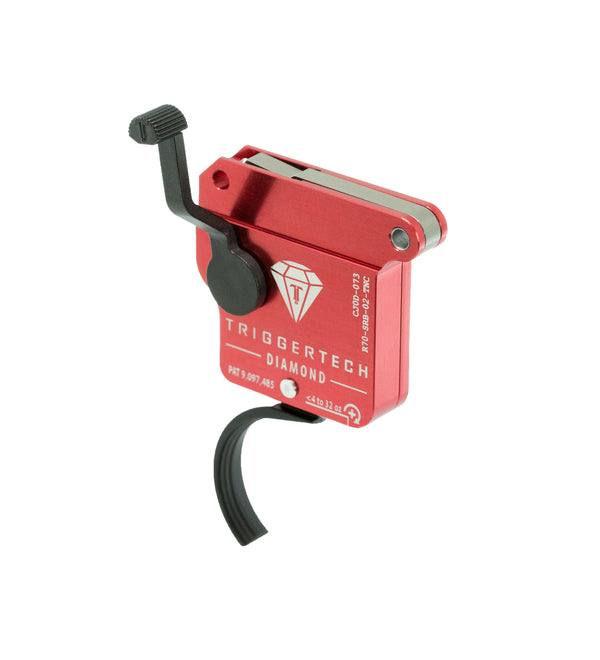

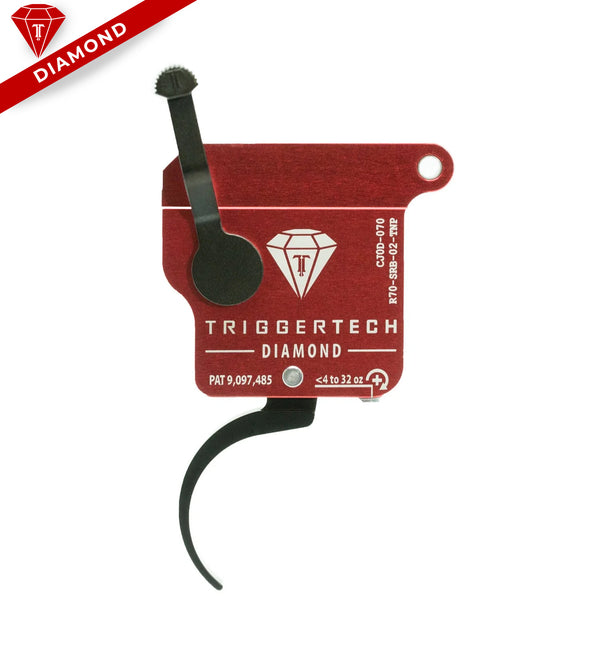

Remington 700 Diamond Trigger (Single-Stage)

Regular price $314.99 USD

The TriggerTech Diamond Rem 700 Trigger was designed to meet the requirements of leading competitive shooters with a pull weight range of <4 oz to 32 oz.

Pull Weight
4 - 32 oz
Hand
Lever Type

Description

The TriggerTech Diamond Rem 700 Trigger (cloned actions only) was designed to meet the requirements of leading competitive shooters with the help of the K&M Shooting Team and several leading R700 Clone Action Manufacturers. The Diamond features a pull weight range of less than 4 oz to 32 oz, our new Variable Rate Adjustment Technology and the new Pro Curved trigger lever. Our shooters have described it is the most consistent and crisp breaking trigger they have ever felt. After feeling the crisp break on the Diamond you will immediately become aware of the creep that exists in all other triggers.

The first Rem 700 Diamond Trigger was shown at the 2017 NRA Show. Since then TriggerTech has worked with the K&M Shooting Team and several leading R700 Clone action manufacturers the refine the product. The Rem 700 Diamond is truly zero creep and is the most consistent and crisp breaking trigger you will ever use. The diamond will make you aware of the creep that exists in other triggers. It features new variable rate adjustment technology that enables quick and confident adjustment from <4oz – 32oz with TriggerTech’s patented CLKR Technology™. The adjustment feature utilizes externally accessible set screw and the adjustment range begins at ~0.2 oz/click from <4 oz to ~9 oz and the changes to ~1 oz click from ~9 oz to 32 oz. Due to the exceptionally crisp break, most shooters report the pull weights feeling significantly lighter than a friction based trigger of the same measured weight. Five of the critical Diamond components are assembled as matched set to enable a true zero-creep break, extremely short overtravel and offers outstanding reliability, even in the harshest environments. Frictionless Release Technology™, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Frictionless Release Technology™ does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots more than you ever thought possible.

All pull weights and measurements are approximate.

***Pull weights of TriggerTech Triggers are directly impacted by firing pin spring weight. Overweight firing pin springs may cause pulls weights to vary above the advertised range***

Download the instruction manual here.

Intended Use

Precision Rifle, benchrest, competition, precision shooting, military, law enforcement, long range hunting, F Class, rugged hunting, harsh environments operations, target shooting, ultra long range, varmint hunting.

Trigger Control Details

Weapon Platform: Remington 700 Clone Actions

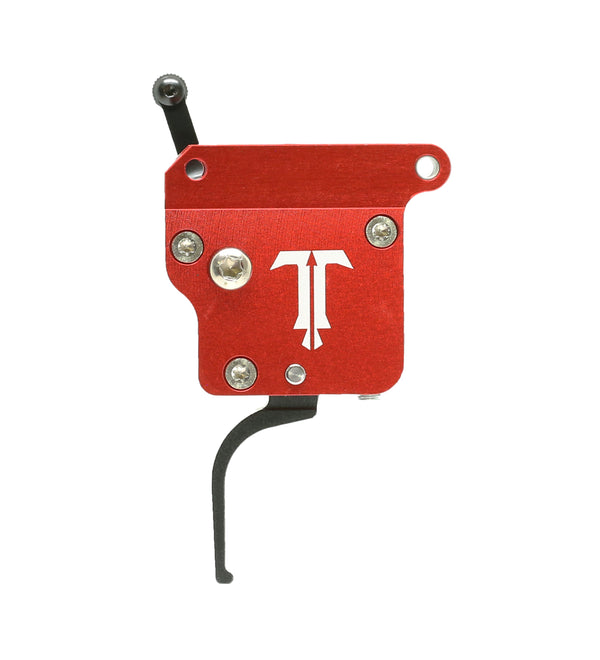

Trigger Lever Type: Traditional Curved, Flat Straight and Pro Curved

Trigger Action: Single Stage

Zero Creep™: Yes

TKR Technology: Yes

CLKR Technology: Yes

Overtravel: Sub .010""

Pull Weight: <4 oz - 32 oz

Bolt Release: Without

Safety: With (removable)

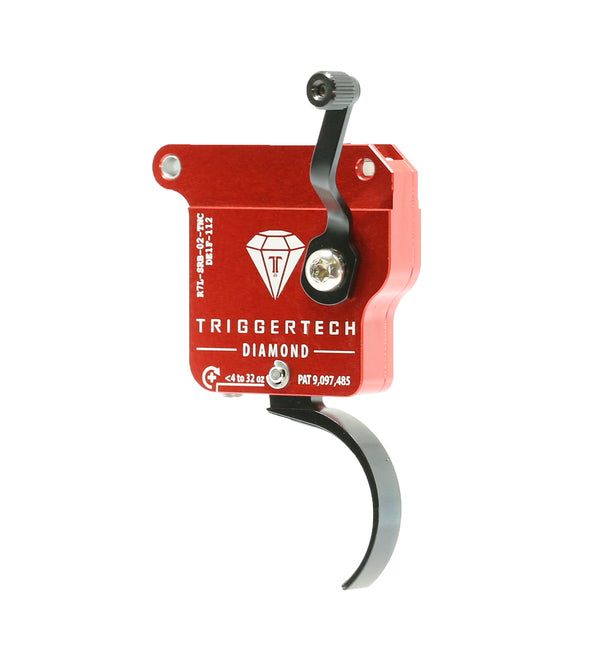

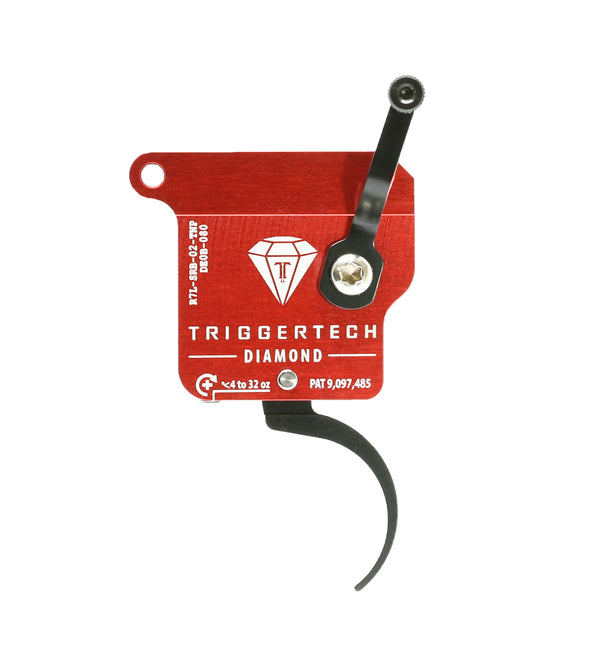

Hand: Right & Left (+ $20)

Warranty: Product lifetime

Material Details

Housing: 7075 Aluminum (anodized)

Key Components: 440C Stainless Steel

PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.

Customer Reviews

Based on 11 reviews
100%
(11)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Rick L.
Begara B14 trigger swap.

I really like the Trigger Tech Diamond. Super easy to install and adjust. The second adjustment point was easy to access for final setting. I would recommend it especially for the Begara B14.

L
Lee L.
The search stops here.

There's some good triggers on the market but this is a great trigger. I installed the Rem 700 Diamond in my Springfield 2020 22lr and printing 1/2" groups at 50 yards. I had to inlet the stock for proper safety lever clearance but I couldn't be more pleased. Now I need Triggertech to offer one for my CZ 457 Varmit MTR. I'm sure other CZ owners feel the same way. No take-up, super clean break and no overtravel. I have mine set at 6-8 ounces measured with no reset issues. This trigger does not disappoint.

B
Brett B.
TriggerMAGIC

The Diamond is so crisp and clean, the only reasonable answer is, magic 😁✨ The best trigger currently on the market IMO. From competition rifles to hunting rifles the Diamond should be your only choice.

J
J L.
Unmatched quality

Installed in my Bergara Bench rest rifle and won the first match I shot in. The quality and workmanship is hands down the best around.

J
James W.
Awesome trigger

Very clean very crisp love these triggers
